La licencia es aplicable a los siguientes productos:
A un vistazo

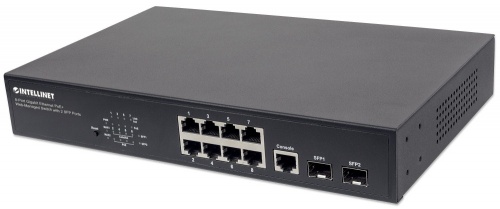

Provides power and data connection for up to eight PoE network devices
Save time and money by delivering data and power via existing network cables
For use on desktop or mounted in standard 19" rack
10/100/1000 auto-sensing ports automatically detect optimal network speeds
Two small form-factor pluggable GBIC module slots (SFP)
IEEE 802.3at/af-compliant RJ45 PoE/PoE+ output ports
Power output up to 30 watts per port*
PoE power budget of 140 watts
PoE surge protection (4 kV) for all RJ45 ports
20 Gbps switch fabric
Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (wireless access points, VoIP phones, IP cameras, etc.)
Green Ethernet power-saving technology deactivates unused ports and adjusts power levels based on the cable length
Complies with the IEEE 802.3az (Energy Efficient Ethernet EEE) specification
Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection
All RJ45 ports with Auto-MDIX (auto uplink) support
Configuration via Web browser, Telnet or SSH
Remote Reboot/restart
Supports SNMP management
PoE Management – PoE port settings, priority and power-on delay
The Powered Device Monitor feature (PDM) restarts any connected PoE device that fails to respond or send out network traffic.
IGMP Snooping for multicast filtering
SNMP V1, V2C, V3 with RMON groups 1, 2, 3 & 9
Supports VLAN (tag-based and port-based)
Supports link aggregation (trunking)
Supports port mirroring
QoS (Quality of Service) bandwidth management
Broadcast storm control with multicast packet rate settings
Store and forward switching architecture
Supports jumbo frames up to 9 kBytes
Supports Rapid Spanning Tree/Spanning Tree protocol
IEEE 802.3x flow control for full duplex
Supports 8k MAC address entries
512 kBytes buffer memory
High-efficiency fan delivers quiet, reliable cooling
Desktop-size metal case
Includes 19" rackmount brackets
Three-Year Warranty
Detalles del producto
Preguntas y respuestas sobre este producto
Resuelve tus dudas preguntando a la comunidad y a nuestro equipo de servicio al cliente.
Especificaciones
Puertos e Interfaces | |
---|---|
Puerto de consola | RJ-45 |
Cantidad de puertos básicos de conmutación RJ-45 Ethernet | 8 |
Número de módulos SFP instalados | 2 |
Puertos tipo básico de conmutación RJ-45 Ethernet | Gigabit Ethernet (10/100/1000) |
Peso y dimensiones | |
---|---|
Altura | 44 mm |
Profundidad | 180 mm |
Peso | 1,6 kg |
Ancho | 280 mm |
Control de energía | |
---|---|
Consumo de energía (max) | 150 W |
Frecuencia de entrada AC | 50/60 |
Voltaje de entrada AC | 100 - 240 |
Diseño | |
---|---|
Material de la carcasa | Metal |
Certificación | FCC Class A, CE |
Montaje en rack | |
Color del producto | Negro |
Número de ventiladores | 1 |
Indicadores LED | Actividad, Enlace, PoE, Poder |
Contenido del embalaje | |
---|---|
Manual de usuario |
