Physical Port
keyboard_arrow_right

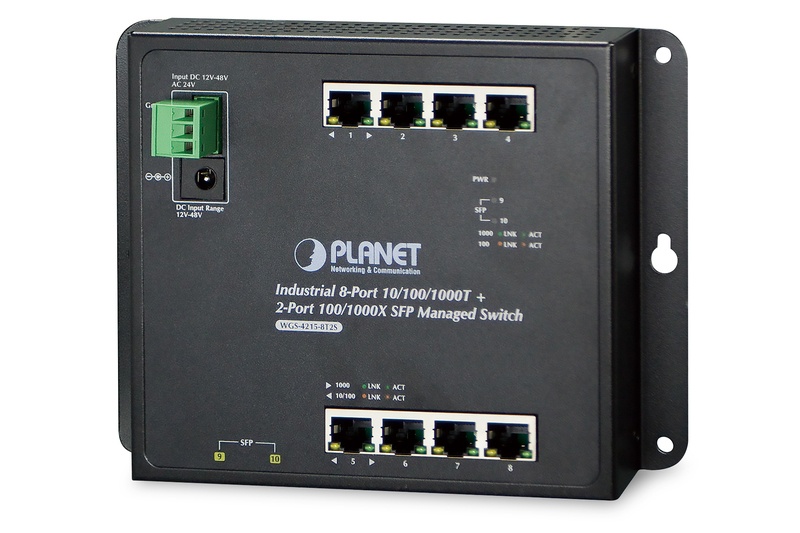

8-Port 10/100/1000BASE-T Gigabit RJ45 copper with IEEE 802.3at PoE+ Injector function
keyboard_arrow_right
2 100/1000BASE-X mini-GBIC/SFP slots
keyboard_arrow_right
Power over Ethernet
keyboard_arrow_right
Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
keyboard_arrow_right
Backward compatible with IEEE 802.3af Power over Ethernet
keyboard_arrow_right
Up to 8 ports of IEEE 802.3af/802.3at devices powered
keyboard_arrow_right
Supports PoE power up to 36 watts for each PoE port
keyboard_arrow_right
Auto detects powered device (PD)
keyboard_arrow_right
Circuit protection prevents power interference between ports
keyboard_arrow_right
Remote power feeding up to 100 meters in standard mode and 250m in extend mode
keyboard_arrow_right
PoE management
keyboard_arrow_right
Total PoE power budget control
keyboard_arrow_right
Per port PoE function enable/disable
keyboard_arrow_right
PoE port power feeding priority
keyboard_arrow_right
Per PoE port power limitation
keyboard_arrow_right
PD classification detection
keyboard_arrow_right
PD alive check
keyboard_arrow_right
PoE schedule
keyboard_arrow_right
Industrial Case and Installation
keyboard_arrow_right
Compact size with fixed wall-mounted, magnetic wall-mounted or DIN-rail design
keyboard_arrow_right
IP30 metal case protection
keyboard_arrow_right
Supports -40 to 75 degrees C operating temperature
keyboard_arrow_right
Supports ESD 8KV DC Ethernet protection
keyboard_arrow_right
Dual power input design
keyboard_arrow_right
48V~56V DC wide power input with polarity reverse protect function
keyboard_arrow_right
3-pin terminal block or DC jack connector
keyboard_arrow_right
Switching
keyboard_arrow_right
Hardware based 10/100Mbps, half/full duplex and 1000Mbps full duplex mode, flow control and auto-negotiation and auto MDI/MDI-X
keyboard_arrow_right
Features Store-and-Forward mode with wire-speed filtering and forwarding rates
keyboard_arrow_right
IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
keyboard_arrow_right
8K MAC address table size
keyboard_arrow_right
10K jumbo frame
keyboard_arrow_right
Automatic address learning and address aging
keyboard_arrow_right
Supports CSMA/CD protocol
keyboard_arrow_right
Layer 2 Features
keyboard_arrow_right
Supports VLAN
keyboard_arrow_right
IEEE 802.1Q tagged VLAN
keyboard_arrow_right
Provider bridging (VLAN Q-in-Q, IEEE 802.1ad) support
keyboard_arrow_right
Protocol VLAN
keyboard_arrow_right
Voice VLAN
keyboard_arrow_right
Private VLAN (Protected port)
keyboard_arrow_right
Management VLAN- GVRP
keyboard_arrow_right
Supports Spanning Tree Protocol
keyboard_arrow_right
STP (Spanning Tree Protocol)- RSTP (Rapid Spanning Tree Protocol)- MSTP (Multiple Spanning Tree Protocol)- STP BPDU Guard, BPDU Filtering and BPDU Forwarding
keyboard_arrow_right
Supports Link Aggregation- IEEE 802.3ad Link Aggregation Control Protocol (LACP)- Cisco ether-channel (static trunk)
keyboard_arrow_right
Provides port mirror (many-to-1)
keyboard_arrow_right
Loop protection to avoid broadcast loops
keyboard_arrow_right
Quality of Service
keyboard_arrow_right
Ingress/Egress Rate Limit per port bandwidth control
keyboard_arrow_right
Traffic classification
keyboard_arrow_right
IEEE 802.1p CoS
keyboard_arrow_right
TOS/DSCP/IP precedence of IPv4/IPv6 packets
keyboard_arrow_right
Strict priority and Weighted Round Robin (WRR) CoS policies
keyboard_arrow_right
Security
keyboard_arrow_right
Storm Control support
keyboard_arrow_right
Broadcast/Unknown unicast/Unknown multicast
keyboard_arrow_right
Authentication
keyboard_arrow_right
IEEE 802.1X port-based network access authentication
keyboard_arrow_right
Built-in RADIUS client to cooperate with the RADIUS servers
keyboard_arrow_right
DHCP Option 82
keyboard_arrow_right
RADIUS/TACACS+ authentication
keyboard_arrow_right
Access Control List
keyboard_arrow_right
IPv4/IPv6 IP-based ACL
keyboard_arrow_right
IPv4/IPv6 IP-based ACE
keyboard_arrow_right
MAC-based ACL
keyboard_arrow_right
MAC-based ACE
keyboard_arrow_right
MAC Security
keyboard_arrow_right
Static MAC
keyboard_arrow_right
MAC filtering
keyboard_arrow_right
Port security for source MAC address entries filtering
keyboard_arrow_right
DHCP snooping to filter distrusted DHCP messages
keyboard_arrow_right
Dynamic ARP inspection discards ARP packets with invalid MAC address to IP address binding
keyboard_arrow_right
IP source guard prevents IP spoofing attacks
keyboard_arrow_right
DoS attack prevention
keyboard_arrow_right
SSH/SSL
