A un vistazo

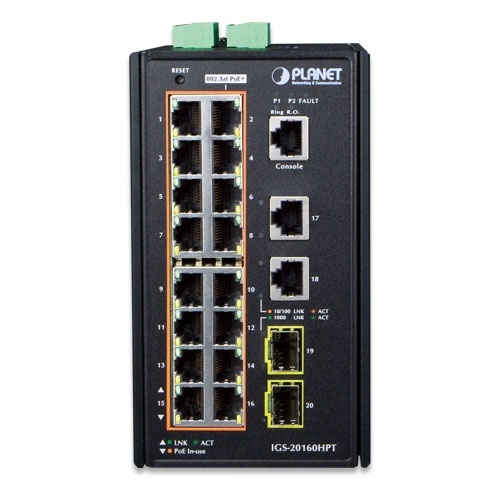

Physical Port
16 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3at PoE+ Injector
2 10/100/1000BASE-T Gigabit Ethernet RJ45 ports
2 100/1000/2500BASE-X mini-GBIC/SFP slots for SFP type auto detection
One RJ45 console interface for basic management and setup
Power over Ethernet
Complies with IEEE 802.3at Power over Ethernet Plus/end-span PSE
Up to 16 IEEE 802.3af/802.3at devices powered
Supports PoE power up to 36 watts for each PoE port
Auto detects powered device (PD)
Circuit protection prevents power interference between ports
Remote power feeding up to 100m in standard mode and 250m in extended mode
PoE management features
Intelligent PoE features
Industrial Protocol
Modbus TCP for real-time monitoring in the SCADA system
IEEE 1588v2 PTP (Precision Time Protocol)
Industrial Case and Installation
IP30 aluminum case
DIN-rail or wall-mount design
48~56V DC, redundant power with reverse polarity protection
Supports 6KV DC Ethernet ESD protection
Supports -40 to 75 degrees C operating temperature
Digital Input and Digital Output
2 digital input (DI)
2 digital output (DO)
Integrate sensors into auto alarm system
Transfer alarm to IP network via email and SNMP trap
Layer 2 Features
Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
High performance of Store-and-Forward architecture, and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
Storm Control support
Broadcast/Multicast/Unicast
Supports VLAN
IEEE 802.1Q tagged VLAN
Up to 4K VLANs groups, out of 4094 VLAN IDs
Supports provider bridging (VLAN Q-in-Q, IEEE 802.1ad)
Private VLAN Edge (PVE)
Port Isolation
MAC-based VLAN
IP Subnet-based VLAN
Protocol-based VLAN
VLAN Translation
Voice VLAN
GVRP
Supports Spanning Tree Protocol
IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN
BPDU Filtering/BPDU Guard
Supports Link Aggregation
802.3ad Link Aggregation Control Protocol (LACP)
Cisco ether-channel (static trunk)
Maximum 10 trunk groups with 4 ports per trunk group
Up to 8Gbps bandwidth (duplex mode)
Provides port mirror (1-to-1)
Port mirroring to monitor the incoming or outgoing traffic on a particular port
Loop protection to avoid broadcast loops
Supports ERPS (Ethernet Ring Protection Switching)
Compatible with Cisco Uni-directional link detection (UDLD) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices
Link Layer Discovery Protocol (LLDP)
Provides ONVIF for co-operating with PLANET video IP surveillances
Layer 3 IP Routing Features
Supports maximum 128 static routes and route summarization
IPv4 dynamic routing protocol supports OSPFv2
IPv4/IPv6 hardware static routing
Routing interface provides per VLAN routing mode
Detalles del producto
Preguntas y respuestas sobre este producto
Aún no hay preguntas acerca de este producto
Resuelve tus dudas preguntando a la comunidad y a nuestro equipo de servicio al cliente.
Resuelve tus dudas preguntando a la comunidad y a nuestro equipo de servicio al cliente.
Especificaciones
| Puertos e Interfaces | |
|---|---|
| Cantidad de puertos básicos de conmutación RJ-45 Ethernet | 16 |
| Número de módulos SFP instalados | 2 |
| Tecnología de cableado ethernet de cobre | 10BASE-T,100BASE-T,1000BASE-T |
| Puertos tipo básico de conmutación RJ-45 Ethernet | Gigabit Ethernet (10/100/1000) |
| Puerto bloque de terminales |
|
| Peso y dimensiones | |
|---|---|
| Altura | 84 mm |
| Profundidad | 107 mm |
| Peso | 1.53 kg |
| Ancho | 152 mm |
| Control de energía | |
|---|---|
| Voltaje de entrada DC | 48 - 56 V |
| Diseño | |
|---|---|
| Montaje en carril DIN |
|
| Material de la carcasa | Aluminio |
| Código IP (International Protection) | IP30 |
| Certificación | FCC 15 A, CE |
| Montaje en rack |
|
| Montaje de pared |
|
| Color del producto | Negro |
| Seguridad | IEC60068-2-32, IEC60068-2-27, IEC60068-2-6 |
| Indicadores LED | Actividad, Enlace, PoE, Corriente, Falla de poder, Anillo |
| Transmisión de datos | |
|---|---|
| Capacidad de conmutación | 40 Gbit/s |
| Número de grupos de multidifusión filtrados | 255 |
| Tabla de direcciones MAC (multidifusión) | 4094 entradas |
| Jumbo Frames, soporte |
|
| Tasa de transferencia (máx) | 1000 Mbit/s |
| Guardar y remitir |
|
| Tabla de direcciones MAC | 8000 entradas |
| Número de VLANs | 255 |
| Tramas Jumbo | 9000 |
| Rendimiento | 29.7 Mpps |
