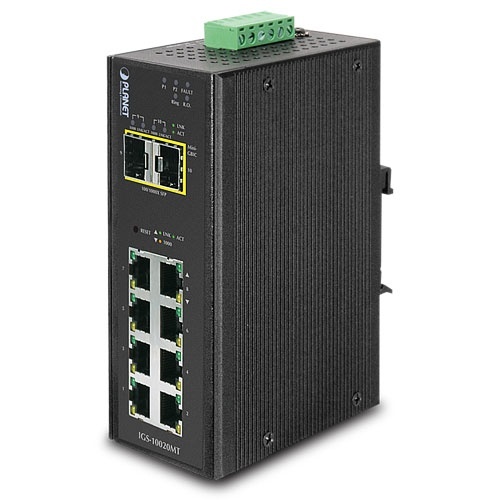

A un vistazo
Physical Port
8 10/100/1000BASE-T Gigabit Ethernet RJ45 ports
2 100/1000/2500BASE-X mini-GBIC/SFP slots for SFP type auto detection
Industrial Case and Installation
IP30 aluminum case protection
DIN-rail or wall-mount design
Redundant power design
12 to 48V DC, redundant power with polarity reverse protect function
AC 24V power adapter acceptable
Supports 6000 VDC Ethernet ESD protection
40 to 75 degrees C operating temperature
Industrial Protocol
Modbus TCP for real-time monitoring in SCADA system
IEEE 1588v2 PTP (Precision Time Protocol)
Layer 2 Features
High performance of Store-and-Forward architecture and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
Storm Control support
Broadcast, Multicast and Unknown Unicast
Supports VLAN
IEEE 802.1Q tagged VLAN
Up to 255 VLANs groups, out of 4095 VLAN IDs
Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
Private VLAN Edge (PVE)
Protocol-based VLAN
MAC-based VLAN
Voice VLAN
GVRP (GARP VLAN Registration Protocol)
Supports Spanning Tree Protocol
IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN
BPDU Guard
Supports Link Aggregation
802.3ad Link Aggregation Control Protocol (LACP)
Cisco ether-channel (static trunk)
Maximum 5 trunk groups, up to 10 ports per trunk group
Up to 26Gbps bandwidth (duplex mode)
Provides port mirror (many-to-1)
Port mirroring to monitor the incoming or outgoing traffic on a particular port
Loop protection to avoid broadcast loops
Supports ERPS (Ethernet Ring Protection Switching)
Compatible with Cisco Uni-directional link detection (UDLD) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices
Link Layer Discovery Protocol (LLDP)
Layer 3 IP Routing Features
Supports maximum 32 static routes and route summarization
Quality of Service
Ingress Shaper and Egress Rate Limit per port bandwidth control
8 priority queues on all switch ports
Traffic classification
IEEE 802.1p CoS
IP TOS/DSCP/IP precedence
IP TCP/UDP port number
Typical network application
Strict priority and Weighted Round Robin (WRR) CoS policies
Supports QoS and In/Out bandwidth control on each port
Traffic-policing on the switch port
DSCP remarking
Multicast
Supports IPv4 IGMP Snooping v1, v2 and v3
Supports IPv6 MLD Snooping v1 and v2
Querier mode support
IPv4 IGMP Snooping port filtering
IPv6 MLD Snooping port filtering
MVR (Multicast VLAN Registration)
Detalles del producto
Preguntas y respuestas sobre este producto
Aún no hay preguntas acerca de este producto
Resuelve tus dudas preguntando a la comunidad y a nuestro equipo de servicio al cliente.
Resuelve tus dudas preguntando a la comunidad y a nuestro equipo de servicio al cliente.
Especificaciones
| Puertos e Interfaces | |
|---|---|
| Cantidad de puertos básicos de conmutación RJ-45 Ethernet | 8 |
| Número de módulos SFP instalados | 2 |
| Tecnología de cableado ethernet de cobre | 1000BASE-T,100BASE-TX,10BASE-T |
| Puertos tipo básico de conmutación RJ-45 Ethernet | Gigabit Ethernet (10/100/1000) |
| Peso y dimensiones | |
|---|---|
| Altura | 135 mm |
| Profundidad | 56 mm |
| Peso | 720 g |
| Control de energía | |
|---|---|
| Consumo energético | 10 W |
| Diseño | |
|---|---|
| Montaje en carril DIN |
|
| Material de la carcasa | Aluminio |
| Código IP (International Protection) | IP30 |
| Certificación | FCC Part 15 Class A, CE |
| Montaje en rack |
|
| Montaje de pared |
|
| Color del producto | Negro |
| Indicadores LED |
|
| Transmisión de datos | |
|---|---|
| Capacidad de conmutación | 20 Gbit/s |
| Jumbo Frames, soporte |
|
| Guardar y remitir |
|
| Tabla de direcciones MAC | 8000 entradas |
| Número de VLANs | 255 |
| Tramas Jumbo | 9000 |
| Número de colas | 8 |
| Rendimiento | 14,8 Mpps |
