A un vistazo

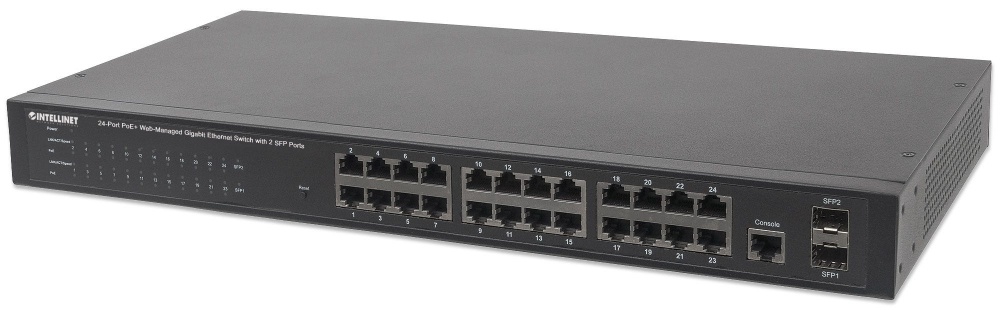

Provides power and data connection for up to 24 PoE network devices
Save installation cost by delivering data and power over existing network cables
10/100/1000 auto-sensing ports automatically detect optimal network speeds
Two small form-factor pluggable GBIC module slots (SFP)
IEEE 802.3at/af-compliant RJ45 PoE/PoE+ output ports
Power output up to 30 watts per port*
PoE power budget of 240 watts
Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (wireless access points, VoIP phones, IP cameras)
The Powered Device Monitor feature (PDM) restarts any connected PoE device that fails to respond or send out network traffic.
Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection
All RJ45 ports with Auto-MDIX and NWay auto-negotiation support
Web-based configuration
Remote Reboot/restart
Supports SNMP management
Supports VLAN (tag-based and port-based)
Provides IEEE 802.1x port-based security
Supports link aggregation (trunking)
IGMP Snooping for multicast filtering
Supports bandwidth control per port
Supports port mirroring
Supports two types of QoS: port-based and DSCP
Broadcast storm control with multicast packet rate settings
Supports jumbo frames up to 9 kBytes
Supports Rapid Spanning Tree/Spanning Tree protocol
Store and forward switching architecture
Full/half duplex operation
IEEE 802.3x flow control for full duplex
Supports 8k MAC address entries
512 kBytes buffer memory
LEDs for power, link/activity and PoE
Two high-volume cooling fans ensure perfect ventilation
Includes 19" rackmount brackets
Three-Year Warranty
Detalles del producto
Preguntas y respuestas sobre este producto
Aún no hay preguntas acerca de este producto
Resuelve tus dudas preguntando a la comunidad y a nuestro equipo de servicio al cliente.
Resuelve tus dudas preguntando a la comunidad y a nuestro equipo de servicio al cliente.
Especificaciones
| Puertos e Interfaces | |
|---|---|
| Cantidad de puertos básicos de conmutación RJ-45 Ethernet | 24 |
| Puertos tipo básico de conmutación RJ-45 Ethernet | Gigabit Ethernet (10/100/1000) |
| Peso y dimensiones | |
|---|---|
| Altura | 44 mm |
| Profundidad | 220 mm |
| Peso | 3,1 kg |
| Ancho | 40 mm |
| Control de energía | |
|---|---|
| Consumo de energía (max) | 260 W |
| Frecuencia de entrada AC | 50/60 |
| Voltaje de entrada AC | 90-260 |
| Diseño | |
|---|---|
| Montaje en rack |
|
| Color del producto | Negro |
| Indicadores LED |
|
| Contenido del embalaje | |
|---|---|
| Manual de usuario |
|
