La licencia es aplicable a los siguientes productos:
A un vistazo

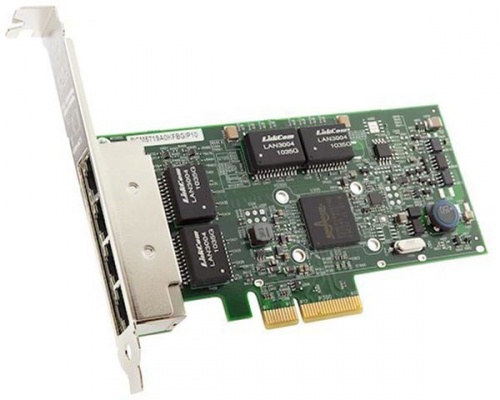

One, two, or four 10/100/1000 copper ports with RJ45 for Cat 5e/6 cabling
Full line-rate performance across all ports
Standard form factor adapters, either PCIe low profile or OCP 3.0 SFF
PCI Express 2.0 host interface
Jumbo Frames support (9600 bytes frames)
Wake-on-LAN (WoL) support
IEEE 802.1q VLAN support - provides enhanced network management and efficiency
I/O virtualization (IOV) support for VMWare NetQueue and Microsoft VMQ - improves network performance in virtualized environments
IEEE 802.3x flow control support
IEEE 802.3ad link aggregation support
IEEE 802.3 auto-negotiation support
Automatic MDI crossover
Receive and transmit side scaling
TCP, IP, and UDP checksum offload
Message Signaled Interrupts (MSI) and MSI-X support - Maximizes server processing performance by reducing CPU overhead and lowering interrupt latency
On-chip temperature monitor (NetXteme I only)
IEEE 802.3az Energy Efficient Ethernet (EEE) compliant - Reduces adapter power consumption by up to 42% through intelligent adaptive power management, adjusting power based on data traffic load. (NetXtreme I only)
IEEE 802.3z (Clause 30) - Statistics for SNMP MIB II, Ethernet like MIB, and Ethernet MIB (NetXtreme I only)
IEEE 1588 Precision Time Control and 802.1AS time synchronization support - Provides greater accuracy of data packet delivery within the network (NetXtreme I only)
Management using Broadcom Advanced Control Suite (BACS), Windows Management Instrumentation (WMI), and Broadcom Management API (BMAPI)
Detalles del producto
Preguntas y respuestas sobre este producto
Resuelve tus dudas preguntando a la comunidad y a nuestro equipo de servicio al cliente.
Especificaciones
Puertos e Interfaces | |
---|---|
Tecnología de conectividad | Alámbrico |
Ethernet LAN (RJ-45) cantidad de puertos | 4 |
Interfaz de host | PCI Express |
Interno | |
Interfaz | Ethernet |
Peso y dimensiones | |
---|---|
Altura | 65 mm |
Profundidad | 19 mm |
Ancho | 132 mm |
Diseño | |
---|---|
Componente para | servidor/estación de trabajo |
Conexión | |
---|---|
Estándares de red | IEEE 802.1Q |
Ethernet LAN, velocidad de transferencia de datos | 10,100,1000 Mbit/s |
