La licencia es aplicable a los siguientes productos:
A un vistazo

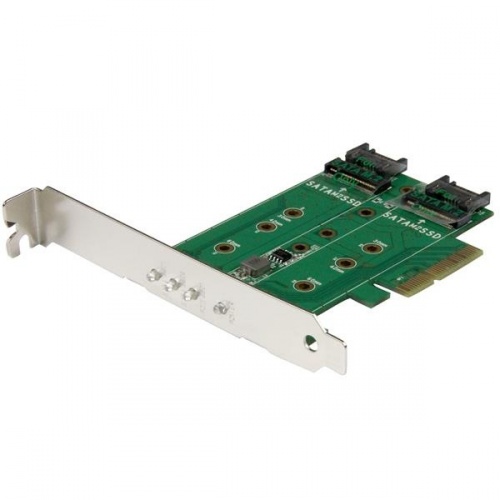

"Expand the storage and improve the performance of your computer, with slots for two M.2 SATA SSDs and one M.2 PCIe SSD
Supports PCI Express 3.0 (x4), ideal for a high-performance M.2 PCIe SSD (NVMe)
SATA slots feature a passthrough design, so your drives can connect to the SATA ports on your host PC
Full bandwidth is available for each M.2 drive simultaneously (up to approximately 40Gbps for M.2 PCIe drives, and up to 6Gbps for M.2 SATA III drives)
Wide installation compatibility, with support for a range of M.2 drives (2280, 2260, 2242, 2230)
Adjustable stand-offs and multiple mounting holes support 80 mm, 60 mm, 42 mm, and 30 mm SSDs"
Detalles del producto
(1) preguntas y (1) respuestas sobre este producto
¿No encuentras la respuesta a tu duda?
Especificaciones
Puertos e Interfaces | |
---|---|
Interfaz de salida | M.2,SATA |
Interfaz de host | PCIe |
Interno | |
Revisión SATA | 3.0 |
Cantidad de puertos SATA internos | 2 |
Expansion card form factor | Full-height / Low-profile |
Expansion card standard | PCIe 3.0 |
Empaquetado de datos | |
---|---|
Tornillos incluídos |
Peso y dimensiones | |
---|---|
Ancho del paquete | 130 mm |
Profundidad del paquete | 160 mm |
Altura | 120 mm |
Peso del paquete | 122 g |
Profundidad | 120 mm |
Peso | 46 g |
Ancho | 20 mm |
Altura del paquete | 44 mm |
Detalles técnicos | |
---|---|
Sustainability certificates | RoHS |
Diseño | |
---|---|
Tiempo medio entre fallos | 50000 h |
Indicadores LED |
