La licencia es aplicable a los siguientes productos:
A un vistazo

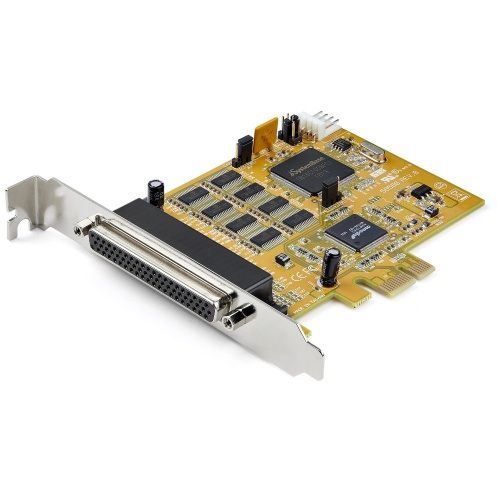

8 PORT SERIAL CARD: Serial controller card w/ 16C1050 UART based on the Systembase SB16C1058PCI, w/15kV ESD, 8x DB9 ports, bi-directional RS232 speeds up to 921.6Kbps per port & 256 byte FIFO buffer_x000D_
OPTIONAL CONFIGURABLE POWER: Multiport serial card provides 12v/5v, or none on pin 9 w/up to 3A total shared; 18"/48cm DB62 to 8x DB9 breakout cable incl; Hex nuts incl for opt screw/nut DB9 interface_x000D_
COMPATABILITY: Full profile PCI-e 1x card and fully compliant w/ PCI Express Base Specifications, Revision 1.0a/1.1; Supports Windows (incl. XP and up) and Linux; For standard profile desktop/servers_x000D_
VERSATILE APPLICATIONS: PCI Express RS232 serial adapter card for within point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, scanners, oscilloscope_x000D_
STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; PCIe RS232 Serial expansion card is backed for life by StarTech.com, incl. free 24/5 North America based multi-lingual tech support_x000D_
_x000D_
Detalles del producto
Preguntas y respuestas sobre este producto
Resuelve tus dudas preguntando a la comunidad y a nuestro equipo de servicio al cliente.
Especificaciones
Puertos e Interfaces | |
---|---|
Interfaz de salida | De serie |
Interfaz de host | PCIe |
Interno | |
Puerto serial | 8 |
Tipo de serie de interfaz | RS-232 |
Peso y dimensiones | |
---|---|
Ancho del paquete | 190 mm |
Profundidad del paquete | 290 mm |
Altura | 120 mm |
Peso del paquete | 672 g |
Profundidad | 105 mm |
Peso | 74 g |
Ancho | 16 mm |
Altura del paquete | 65 mm |
Detalles técnicos | |
---|---|
Sustainability certificates | RoHS |
Requisitos del sistema | |
---|---|
Sistema operativo de servidor soportado | Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2016,Windows Server 2019 |
Sistema operativo Linux soportado | |
Sistema operativo Windows soportado | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 IoT Enterprise,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 2000,Window |
Otras características | |
---|---|
Cumplimientos estándar de la industria | 16C1050 UART |
